Flanges

Flanges Electrical Busbar System - RR Global

Product Range

TECHNICAL DATA

Amps Minimum size - X Minimum size - Y Maximum size - X Maximum size - Y Title

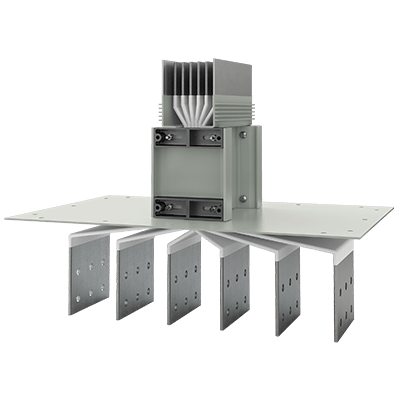

800A 220mm 840mm Copper Flanges dimensions
1000A 220mm 840mm Copper Flanges dimensions
1250A 220mm 840mm Copper Flanges dimensions
1400A 220mm 840mm Copper Flanges dimensions
1600A 220mm 840mm Copper Flanges dimensions
2000A 220mm 840mm Copper Flanges dimensions
2500A 220mm 840mm Copper Flanges dimensions
3200A 220mm 840mm Copper Flanges dimensions
4000A 220mm 840mm Copper Flanges dimensions
5000A 220mm 840mm Copper Flanges dimensions
6300A 220mm 840mm Copper Flanges dimensions
rrfans

TECHNICAL DATA

Amps Minimum size - X Minimum size - Y Maximum size - X Maximum size - Y Title
800A 220mm 840mm Aluminium Flanges dimensions
1000A 220mm 840mm Aluminium Flanges dimensions
1250A 220mm 840mm Aluminium Flanges dimensions
1600A 220mm 840mm Aluminium Flanges dimensions
2000A 220mm 840mm Aluminium Flanges dimensions
2500A 220mm 840mm Aluminium Flanges dimensions
3200A 220mm 840mm Aluminium Flanges dimensions
4000A 220mm 840mm Aluminium Flanges dimensions
5000A 220mm 840mm Aluminium Flanges dimensions
rrfans

TECHNICAL DATA

Amps Minimum size - X Minimum size - Y Maximum size - X Maximum size - Y Title
800A 250mm 117mm 750mm 500mm Copper Combination Flange dimensions
1000A 260mm 127mm 750mm 500mm Copper Combination Flange dimensions
1250A 270mm 137mm 750mm 500mm Copper Combination Flange dimensions
1400A 280mm 147mm 750mm 500mm Copper Combination Flange dimensions
1600A 300mm 167mm 750mm 500mm Copper Combination Flange dimensions
2000A 325mm 192mm 750mm 500mm Copper Combination Flange dimensions
2500A 385mm 252mm 750mm 500mm Copper Combination Flange dimensions
3200A 450mm 381mm 750mm 500mm Copper Combination Flange dimensions
4000A 525mm 393mm 750mm 500mm Copper Combination Flange dimensions
5000A 625mm 493mm 750mm 500mm Copper Combination Flange dimensions
6300A - - - - Copper Combination Flange dimensions
rrfans

TECHNICAL DATA

Amps Minimum size - X Minimum size - Y Maximum size - X Maximum size - Y Title
800A 260mm 127mm 750mm 500mm Aluminium Combination Flange dimensions
1000A 270mm 137mm 750mm 500mm Aluminium Combination Flange dimensions
1250A 310mm 177mm 750mm 500mm Aluminium Combination Flange dimensions
1600A 325mm 217mm 750mm 500mm Aluminium Combination Flange dimensions
2000A 385mm 292mm 750mm 500mm Aluminium Combination Flange dimensions
2500A 450mm 343mm 750mm 500mm Aluminium Combination Flange dimensions
3200A 525mm 393mm 750mm 500mm Aluminium Combination Flange dimensions
4000A 625mm 493mm 750mm 500mm Aluminium Combination Flange dimensions
5000A - - - - Aluminium Combination Flange dimensions
rrfans
