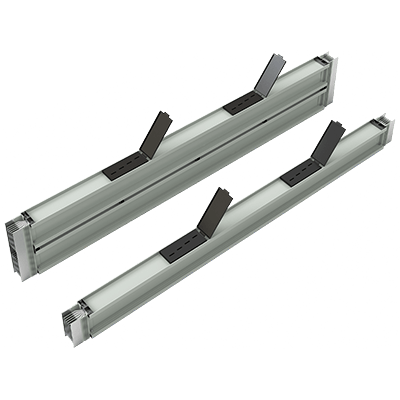

STRAIGHT LENGTH PLUG-IN

Tap Off Unit Rating	Straight Length (Plug-in) Size
	Minimum Size (mm)	Maximum Size (mm)
16 A to 100 A	900	4000
125 A to 160 A	1000	4000
200 A to 250 A	1100	4000
300 A to 400 A	1300	4000
500 A to 630 A	1400	4000
800 A to 1000 A	1600	4000

• For tapping power from main line through plug-in boxes.
• Rating and number of plug-in points shall be as per site requirment.
