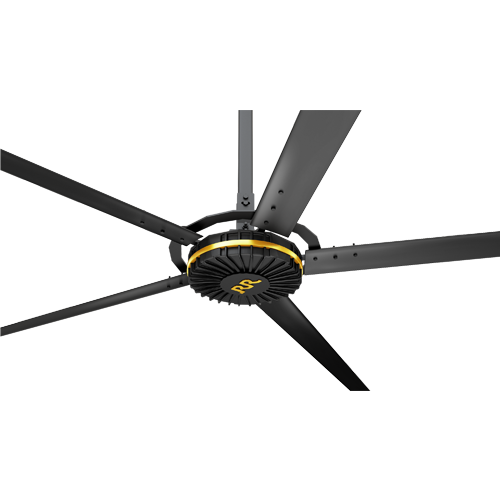

PMSM HVLS Fans

Permanent Magnet Synchronous Motorised (PMSM) HVLS Fan series from RR has been conceptualized and developed at our in-house R&D centre. It has a light and stylish design with the fan blades made from aviation grade aluminum that makes them stronger and more efficient. The winglets help in reducing air resistance and noise, reaching optimal silent performance at low speeds. Our PMSM HVLS Fan is certified with ISO 9001:2015 and made using only world class industrial grade components and spare parts of the highest quality. We ensure the most efficient and reliable fan for you to use.

	HVLS FAN	WALL FAN
	HVLS FAN	WALL FAN	Fan Diameter (m)	7.3	0.75
Power (kW)	1.5	0.36
Air Flow (m/min)	13000	300
Effective Area (m2)	1500	30/td>
Factory Area	9000	9000
Total Units Installed	6	300
Total kW Installed	9	100
Consumption Year @10Hrs/day @26 days/myth	28080	336960

LOW SPEED
LIGHT WEIGHT
SILENT DESIGN

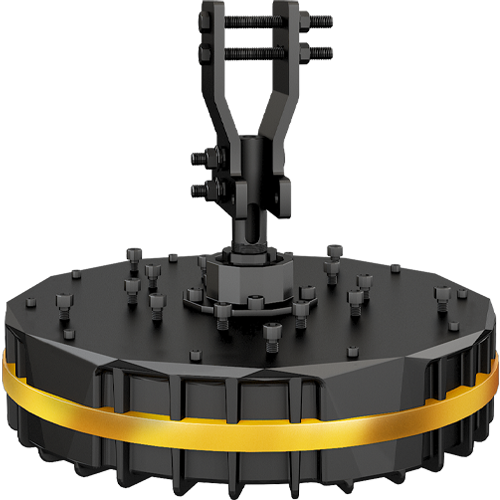

PMSM MOTOR
ENERGY SAVING
MAINTAINANCE FREE

	PMSM
	PMSM						Model	PH-V05R-8	PH-V05R-10	PH-V05R-12	PH-V06R-16	PH-V06R-20	PH-V06R-24
Diametre	8	10	12	16	20	24
Input Power	Single Phase 230 Volt, 50 Hz
Blade Material	Aviation Grade Extruded Aluminium Alloy 6063 -T3
No. of Blade	5
Nominal Fan Weight (Kg)	43	46	49	84	89	95
Power (W)	200	275	350	600	800	950
RPM (Rated)	110	100	95	80	65	55
Area Coverage (Sq. Ft)	4000	5500	7000	100000	13500	18500
Floor to fan blade height (Ft)	12-15 ft	14-17 ft	16-18 ft	18-22 ft	22-27 ft	27-30 ft
Sound Level	45--50 dB
Blade Clearance from ceiling	3-4 Ft
Max Air Flow (CFM)	136000	150000	164000	220000	280000	380000

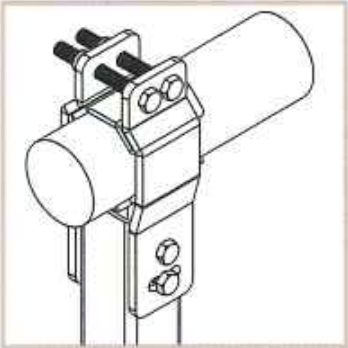

ROUND PIPE MOUNTING
CEILING MOUNTING

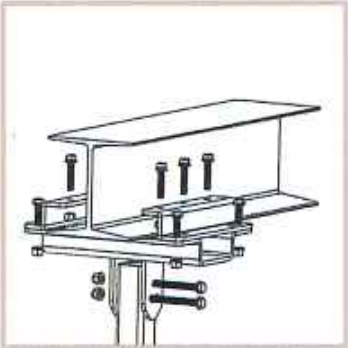

I-BEAM MOUNTING

MANUFACTURING UNITS
SHOPPING MALL
RAILWAYS TERMINALS
RELIGIOUS TERMINALS
COW SHEAD/POULTRY
BUS TERMINALS
WARE HOUSE
FOOD COURT
AIR PORT
GYMNASIUM
