EDGEWISE OFFSETS

Edgewise Offsets

Download brochure
Edgewise Offsets - RR Global UAE
EDGEWISE OFFSETS

PRODUCT RANGE

/
Busbar Rating(Amps) Conductor Size Minimum size in mm Standard size in mm Maximum size in mm Title
X Y X Y X Y Y

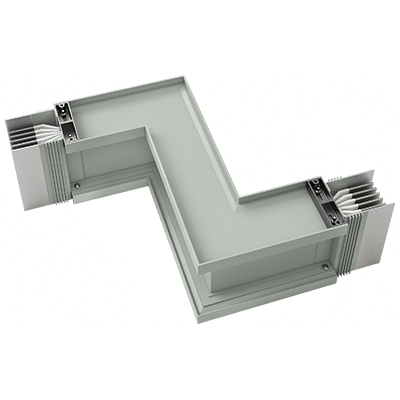

800A 1 X 50 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
1000A 1 X 60 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
1250A 1 X 70 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
1400A 1 X 80 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
1600A 1 X 100 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
2000A 1 X 125 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
2500A 1 X 200 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
3200A 2 X 110 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
4000A 2 X 150 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
5000A 2X 200 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
6300A 3 X 150 X 6 mm 250 180 350 350 850 850 Copper Edgewise Offsets Dimensions(Guardex)
1400A 1 X 100 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
2000A 1 X 150 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
2500A 2 X 80 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex)
/
Busbar Rating(Amps) Conductor Size Minimum size in mm Standard size in mm Maximum size in mm Title
X Y X Y X Y Y

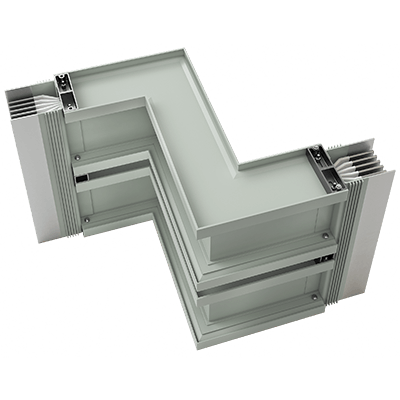

800A 1 X 60 X 6 mm 250 180 350 350 750 750 Aluminium Edgewise Offsets dimensions
1000A 1 X 80 X 6 mm 250 180 350 350 750 750 Aluminium Edgewise Offsets dimensions
1250A 1 X 110 X 6 mm 250 180 350 350 750 750 Aluminium Edgewise Offsets dimensions
1600A 1 X 150 X 6 mm 250 180 350 350 750 750 Aluminium Edgewise Offsets dimensions
2000A 1 X 200 X 6 mm 250 180 350 350 750 750 Aluminium Edgewise Offsets dimensions
2500A 2 X 125 X 6 mm 250 180 350 350 750 750 Aluminium Edgewise Offsets dimensions
3200A 2 X 150 X 6 mm 250 180 350 350 750 750 Aluminium Edgewise Offsets dimensions
4000A 2 X 200 X 6 mm 250 180 350 350 750 750 Aluminium Edgewise Offsets dimensions
5000A 3 X 200 X 6 mm 250 180 350 350 800 800 Aluminium Edgewise Offsets dimensions
/
Busbar Rating(Amps) Conductor Size Minimum size in mm Standard size in mm Maximum size in mm Title
X Y X Y X Y Y
800A 1 X 45(P) X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
1000A 1 X 45 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
1250A 1 X 55 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
1600A 1 X 80 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
2000A 1 X 110 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
2500A 1 X 150 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
3200A 2 X 95 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
4000A 2 X 120 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
5000A 2 X 160 X 6 mm 250 180 350 350 750 750 Copper Edgewise Offsets Dimensions(Guardex Plus)
